PFormula-Ultrasonics has developed an advanced ultrasonic cutting system engineered to deliver superior performance, higher durability and maximum energy efficiency. Designed for demanding industrial applications, this solution integrates solid tungsten carbide ultrasonic blades to minimize damping and optimize ultrasonic transmission.
The result is a cutting technology that clearly outperforms conventional ultrasonic cutting systems.

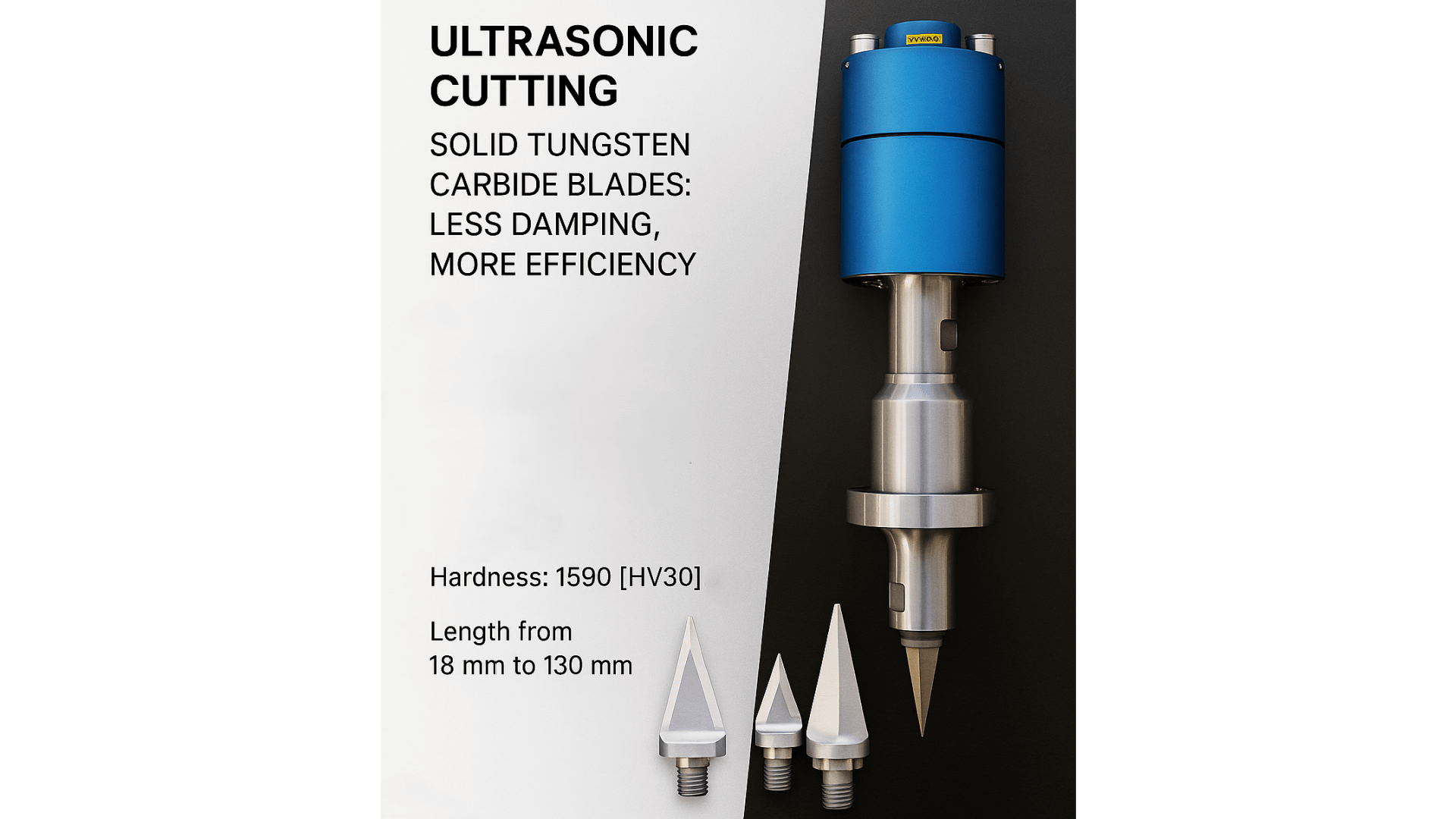

Solid Tungsten Carbide Blades: Less Damping, More Efficiency
Unlike traditional ultrasonic cutting tools that use composite or assembled materials, PFormula blades are manufactured from a single material – solid tungsten carbide.
This monolithic design provides significant advantages:
- Reduced internal damping
- Improved ultrasonic energy transmission
- Higher cutting efficiency
- Greater dimensional stability
- Extended tool lifetime
By minimizing energy losses inside the blade, more ultrasonic power reaches the cutting interface. This ensures cleaner cuts, reduced force requirements and improved process consistency.
With a hardness of 1590 HV30, the blades offer exceptional wear resistance, even in abrasive or high-cycle applications.
Available blade lengths range from 18 mm to 130 mm, enabling adaptation to different cutting depths and industrial requirements.
Competitive Advantages Over Conventional Ultrasonic Cutting Systems
Compared to standard ultrasonic cutting solutions available on the market, PFormula’s system delivers clear technological benefits:
1. Higher Ultrasonic Efficiency
The solid tungsten carbide construction significantly reduces vibration damping, allowing more effective amplitude transfer to the cutting edge.
2. Longer Tool Life
Thanks to the high hardness and structural integrity of tungsten carbide, blade wear is substantially reduced, lowering maintenance costs and downtime.
3. Improved Cutting Precision
Optimized vibration transmission results in:
- Cleaner edges
- Reduced material deformation
- Minimal heat-affected zones
4. Greater Process Stability
The rigid monolithic blade structure ensures consistent resonance behavior and stable ultrasonic performance over time.
5. Reduced Operating Costs
Higher durability and efficiency translate into:
- Fewer blade replacements
- Lower energy losses
- Increased production uptime
Designed for Industrial Performance
The PFormula ultrasonic cutting system is suitable for a wide range of industrial applications, including:
- Technical textiles
- Composite materials
- Thermoplastics
- Rubber and elastomers
- Food industry applications (depending on configuration)
The system is engineered for integration into manual, semi-automatic or fully automated production environments.
Engineering Innovation by PFormula Ultrasonics
PFormula’s expertise in ultrasonic technology ensures that every cutting system is designed with a strong focus on:
- Energy optimization
- Mechanical robustness
- Precision manufacturing
- Long-term reliability
By combining advanced ultrasonic engineering with high-performance materials such as solid tungsten carbide, PFormula delivers a cutting solution that sets a new benchmark in ultrasonic efficiency and durability.
Ultrasonic Cutting Redefined
PFormula’s ultrasonic cutting technology represents a significant step forward compared to conventional systems. With less damping, more efficiency and superior wear resistance, it provides manufacturers with a high-performance, cost-effective and future-ready cutting solution.
For more information about our ultrasonic cutting systems and solid tungsten carbide blades, contact PFormula Ultrasonics or visit:
